Micro-4/3 mount Speed Booster® adapter designed exclusively for the Panasonic GH4 and other selected Micro Four Thirds cameras (refer to the below camera compatibility table), with a magnification of 0.64x. The Speed Booster XL 0.64x uses an advanced 6-element optical design to achieve extraordinary optical performance at apertures up to an incredible f/0.80, a new record for Micro Four Thirds format. The new Speed Booster XL 0.64x reduces the full-frame crop factor of the Panasonic GH4 from 2.0x to 1.28x, thus effectively transforming these cameras into APS-H format. When the GH4 is used in Cinema 4k video mode the horizontal full frame crop factor is reduced from 2.34x to 1.50x, thus effectively transforming the GH4 into a super-35 format 4k cine camera. In addition, the speed of any attached lens is increased by 11/3 stops, with a maximum output aperture of f/0.80 when an f/1.2 lens is used. For example, a 50mm f/1.2 becomes a 32mm f/0.80, which is the fastest aperture available for full size Micro Four Thirds format. (More information can be found in the press release here )
Key Features

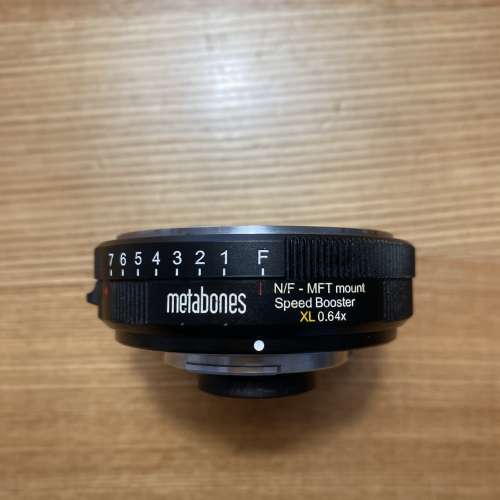

Industry's best aperture ring covers a 8-stop range, clearly indicating actual number of f-stops. No more guesswork! (Patent granted).
Compatible to both Nikkor G lens & F lens (include non-AI & AI lens mounts).
Increase maximum aperture by 1 1/3 stops.
Increase MTF.
Makes lens 0.64x wider.
Click-less manual G aperture ring.
Support Panasonic GH6, GH5, GH5s, GH4, GH3, G3, G5, G6, G7, G9, G9 II, G10, GF3, GF5, GF6, GX1, GX8, GX80/GX85, GX9, Olympus E-PL7, Blackmagic Cinema Camera with Micro Four Thirds mount, Blackmagic Pocket Cinema Camera, Blackmagic Pocket Cinema Camera 4K.
Optics designed by Caldwell Photographic in the USA (patent pending).
The tripod foot is detachable and compatible with Arca Swiss, Markins, Photo Clam ball heads.
Tips: Before mounting your lens to the adaptor, please make sure that the f-stop of aperture ring on the adaptor is turned to "7" (i.e. mounting your lens to the adaptor while only the aperture ring in the adaptor is full closed.).
Remark: This mount is manual aperture control. It does NOT support electronic aperture control.
